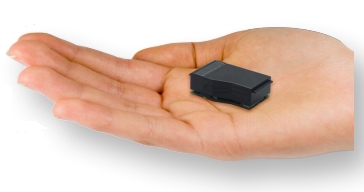

ASKA - SYSTEMY AUTOMATYCZNEJ IDENTYFIKACJI OCR310 Miniaturowy moduł czytnika OCR
Combining ultra-compact size and low-power consumption, the OCR310 is designed to be integrated into hand-held devices for applications such as queue-busting at airport check-in desks and for the police in portable identification verification devices.
An OCR decoder is integrated within the device. Using Access’ proven design, the Access advanced recognition engine provides highly accurate and very fast document reading.
The OCR reader module captures code lines from machine readable travel documents including machine readable passports (MRP), visas (MRV) and OCRB encoded cards such as the US Resident Alien card and European national ID cards. In addition, APACS debit and credit documents can be read (APACS standards 3.1 and 3.2, respectively), together with E13B, OCRB and mixed E13B and OCRB fonts.
 |
 |
Read capabilities
Standard OCR fonts: OCR-B and E13B
Machine readable passports (MRP) : 2 lines of 44 characters
Machine readable visas (MRV) : 2 lines of 44 characters, 2 lines of 36 characters
Travel documents: 2 lines of 36 characters, 3 lines of 30 characters
Field of view object height: 19.6mm nominal
Depth of field: 1.5mm maximum from imager window
General
Overall dimension (excluding flanges): 36.3L x 22.7W x 18.5H mm
Weight: 16g
Interfaces
Host interface: Bidirectional, serial, USB HID or USB keyboard output
Connection

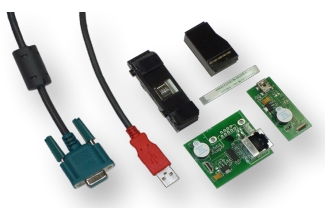

Connector: 12 way, 0.5mm pitch flat flexible ribbon (FFC): mating connector and cable available on request
Electrical specifications
Input voltage: 3VDC
Environmental
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 60°C
Approvals
Safety: UL 1950 /IEC950
RF/EMI: EN 55022 Class B, FCC Part 15, Subpart B, class A, BSMI EMC Class B
